Straight & Bevel Edge Bander — HOLD HD783J
A 10-metre line that glues, trims and buffs the edge band in a single pass at up to 23 m/min — seamless straight and 45° bevelled edges.
20 processing unitsMachine 02 / 11CNC panel line
Documented specifications
Figures from the catalogue — not marketing numbers
- Line length approx. 9.9 m
- 20 processing units in sequence
- 34 kW total power
- Feed speed up to 23 m/min
- Edge band 0.4–3 mm
- 45° bevel at 5/8 mm height
- Panel thickness 10–60 mm
- Bevel mode: 12–25 mm panels with 0.6–1.2 mm tape at 14 m/min feed
- Motorised pressure-beam lift from the touchscreen — no manual setting
- Panel pre-heating before gluing for a stronger bond
- All four corners rounded, with scraping that removes knife marks
- Two anti-adhesive and cleaning units strip glue residue off the surface

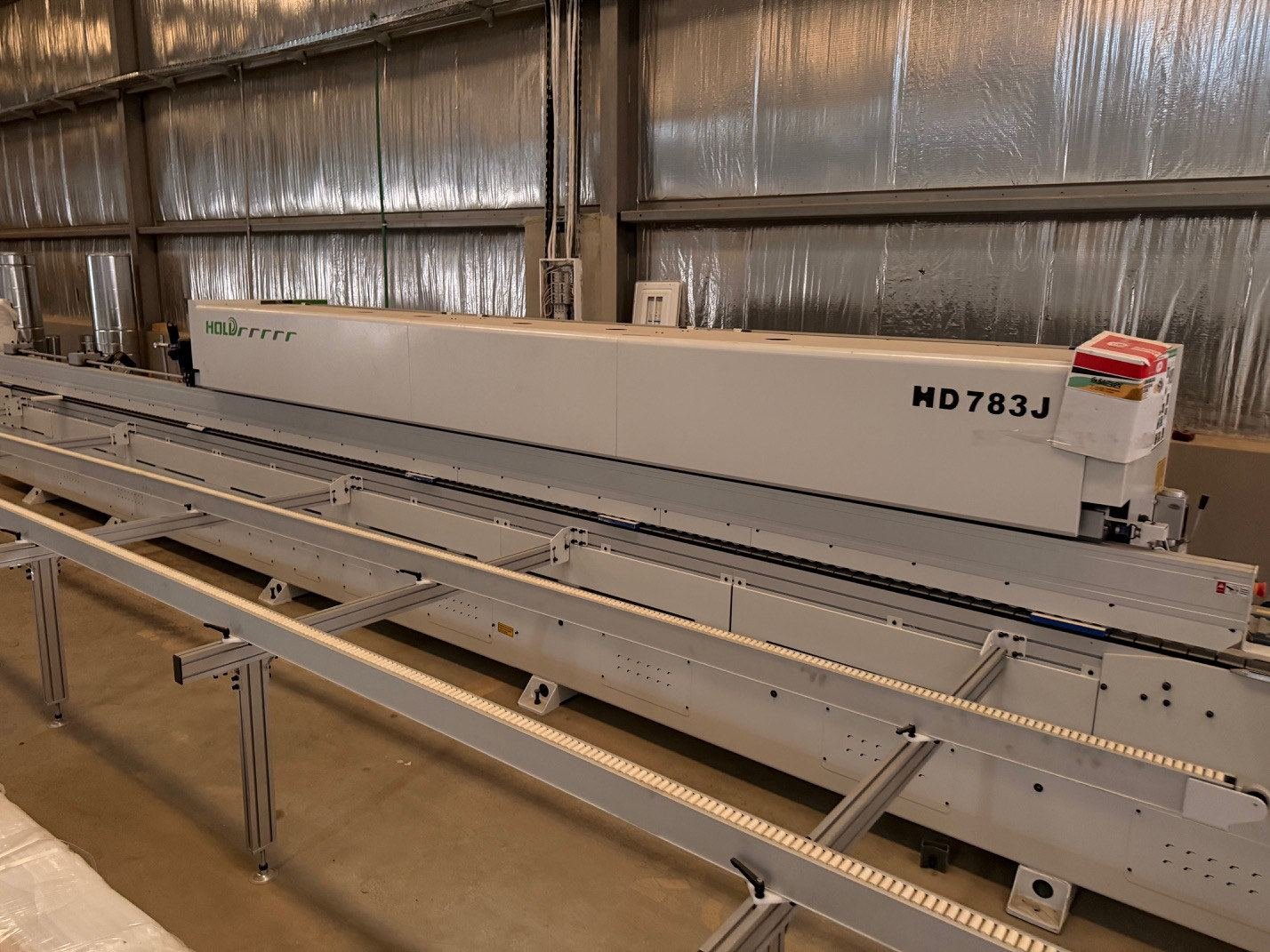

The machine's role on the line: A 10-metre line that glues, trims and buffs the edge band in a single pass at up to 23 m/min — seamless straight and 45° bevelled edges. It works within the CNC panel line at the Abaq factory in Riyadh, and every part that passes through it is inspected before it moves on to the next stage.
